Very quickly, the ability to move ended. As the snow built up around my torso I squirmed to maintain some sense of mobility, but it was futile.

Even the simple act of breathing was becoming a struggle as the snow’s weight bore down on my chest, making it difficult to draw even a breath. My heart began racing, rising like the tide of snow that was enveloping me. I fought back by taking a few deep breaths, expanding my chest as far as possible before the snow set up like a cast around my entire body.

Then silence.

I took a breath, drawing deeply on the mouthpiece of an AvaLung, listening to the sound of the valve controlling the direction of airflow, through the tube, and deep into my lungs. I held it for a moment, listening to the quiet, then exhaled to another pause in the song that was to be my burial companion, a mixture of silence, air rushing down a tube, and, depending on the depth and rate at which I drew or expelled air, the sound of the valve, resonating low and thoughtful like an oboe.

I’d been forewarned that others before me had found the solitary, musical note of the AvaLung’s valve to be a source of reassurance. They were right. I had several other sources of reassurance to boot. Most importantly that this was a controlled exercise, and not a real burial in a real avalanche. Ostensibly this was a ski junket to check out Black Diamond’s new telemark binding, the O1. However, the last line of the email invitation was ominous, saying, “we’d like to bury you when you’re out here.”

Silly me. I accepted.

Besides the basic knowledge of knowing I could cry “Uncle” anytime I wanted, I also had on several extra layers of clothing, consisting of two layers of wool on my legs, wool, Dri-Clime fleece and down around my torso and arms, a layer of Schoeller over all that, plus a wool beret and neoprene face mask. On my feet I had opted for a pair of oversized, felt lined Sorell boots, and over all of that was a one-piece Gore-Tex shell that provided a final barrier to the snow. Before being buried in the snow, I was toasty.

Thank God I had only been asked to experience being buried, not also to be a guinea pig for hypothermia data. That level of service included the additional honor of wearing a rectal probe for monitoring core temperature, swallowing an esophageal probe, and freezing. As it was, I only had probes attached to my shoulders, waist and forehead, plus probes on three of my fingers. From wires attached to these sensors Dr. Colin Grissom (the medical doctor running the experiment) could monitor my pulse, breathing rate, breathing volume, level of oxygen saturation in my blood, and percentage of carbon dioxide (CO2) inhaled and exhaled.

That wasn’t the end of my list of assurances or conveniences for being buried. Besides all the above, next to my face was a walkie talkie. Any time I decided I’d had enough I could simply say, “Dig me out,” and the team would begin to unbury me. More importantly, it was my link and reminder that this was only a test as the silence would be interrupted every five minutes to tell me how things looked on the medical front, and ask if I was okay. It had also been determined beforehand that I wasn’t expected to set any records for length of burial, and 60 minutes was the proposed limit.

Silly me. I agreed again.

Last, but certainly not least was the assurance of being able to breathe, courtesy Black Diamond’s new AvaLung Pack. Without family and friends, one can exist for many years. Without food, over a month; with a strong will, perhaps 40 days. Without water, three, maybe four days. Without air? Experiments like this put the average at only 10 minutes. There’s a reason they call it the breath of life. And soon enough I would find out my own personal limit without an AvaLung.

The AvaLung works, not so much by drawing air from the surrounding snowpack, which it does, but more by expelling air into a distant pocket of snow. By separating where you inhale from where you exhale, you reduce your intake of CO2. The net result is you can live longer, hopefully until rescuers find you still alive and breathing. Otherwise, you simply lapse into unconsciousness from a combination of oxygen deprivation and CO2 poisoning, aka, asphyxiation. From there, death is a just a short matter of time.
The cause of death for avalanche victims is now well documented; 25% of avalanche victims die from trauma, 75% from asphyxiation. Death by hypothermia is statistically insignificant.

Asphyxia can be caused by 1) the airway being packed with snow, 2) the weight of snow preventing chest expansion, thereby impairing breathing, 3) the simultaneous reduction of available oxygen and increase of carbon dioxide in the snowpack, and 4) the formation of an ice mask around the nose and mouth preventing air diffusion. If you’re buried and not killed by trauma, you have a 92% chance of survival if extricated within 15 minutes. That drops to to 30% at 35 minutes.

At sea level, air is a mixture of nitrogen (N), almost 79%, and oxygen (O2), 21%. There are also trace amounts of other chemicals, notably 0.03% carbon dioxide (CO2). However, when we exhale, our body has burned up some of the oxygen, so the mixture changes to 16% O2, and 5% CO2.

Now restrict the airspace that you breath from, like in an avalanche, and you can see that the levels of CO2 and O2 will invert rapidly. The smaller the airspace, the faster the oxygen is reduced.

In this new version, the AvaLung is integrated with a pack. This has a two-fold advantage. By integrating with a pack, the physical separation of inhaled from exhaled air is increased, theoretically increasing survival time. Air is inhaled above the left shoulder, and exhaled through a port in the opposite, lower-right corner of the pack.

More importantly though, the AvaLung pack addresses the excuse factor. With the original AvaLung I remember joking that people would be more concerned with the color of the vest matching their outfit than the function; perhaps an extreme attitude, but sadly, closer to reality than I realized at the time. However, every backcountry skier I know uses a pack, and if an AvaLung is part of the deal, heck, why not? Cost becomes secondary, while excuses about inconvenience or self-consciousness become moot.

Even with all these wonderful assurances, my burial experience could hardly be called fun. Despite the voluntary and controlled nature of it all, I was surprised at how quickly panic and claustrophobia arose as the snow piled around and over me. And I’m not claustrophobic, nor prone to panic. I was as comfortable as one could be while being buried, yet I still had to fight to remain calm while the pressure of the snow gripped my body and psyche. The medical monitors revealed what I felt. My heart raced 90-plus beats a minute while my breathing increased in volume and rate. After a few minutes I learned to trust the AvaLung and began to make peace with immobility. After all, it was only going to be for an hour.

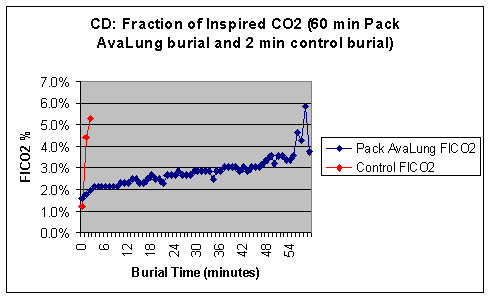

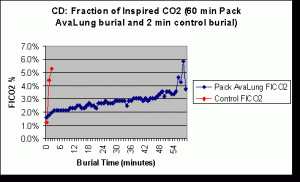

Physiologically my burial was nearly textbook normal. After initial jitters and freaking out a bit at being buried, my heart rate dropped and breathing steadied. As time wore on, my heart rate, breathing rate and volume began to slowly increase in response to a slow decline in available oxygen and an increase in inspired CO2. In my case the snow around my body melted away, providing a path for the expirated CO2 to leak in to the zone where my air was drawn from the snow. This was probably exaggerated somewhat because, contrary to the advice given to me, I squirmed and thus, increased the size of this gap. If no one were available to rescue me, an AvaLung would merely stretch out the process of asphyxiation.

Throughout the next 60 minutes I asked myself over and over what it would be like to actually be caught in an avalanche. In a real avy I’d probably be wearing half the layers of clothing I had on now. I probably wouldn’t have a neoprene face mask, or be sitting comfortably upright. In a real avy I’d be “Maytagged” in a maelstrom of snow and violence with non-releasable tele bindings that would drag me to the bottom of the avy lizards’ tongue of debris. In a real avy who knows what twisted position I’d be stuck in, what skin would be exposed, what orifice would be packed with snow, what ligaments and bones might be broken, what sort of pain I’d have to contend with besides the uncertainty of rescue, and coming face to face with my Maker in short order.

Continued on page 2

AvaLung Burial continued…

That was the crux. In this case I knew that, unless He tapped me on the shoulder this very hour for some twisted reason that I couldn’t fathom, I would emerge unscathed. But if it were real, I wouldn’t be able to say that. If it were a real avy, I’d be just as immobile, but more completely so. Not only would I be pinned to the mat physically, but I’d be wedged in a vice of fate. Even if I had an AvaLung and were breathing, would that merely be a way to slow down the final steps to the door of eternity? Or would it be the belay device that allowed my stay on Earth to continue? Would my friends get to me in time, or were they caught too? Would I see my wife and kids again? Was my belief in eternity right, or wrong?

So far there are only four incidents on record where AvaLung users have been buried in an avalanche and survived (Ed. note: As of 2012 there at least a dozen). In all cases, the AvaLung allowed the users to remain calm and, at least initially, have a positive attitude. However, the reality of the questions I posed above seems uncomfortably poignant in light of a recent account.

In a 2002 accident, while heli-skiing in British Columbia, three people were caught and buried in a slide. The only survivor, a telemark skier from Colorado, and the only one having an AvaLung, saw the slide begin above him. He consciously put the mouthpiece in his mouth and managed to keep it in his mouth despite being swept down the slope 200 meters and over a rock band. He came to rest along with the other victims 1-1.5m (6-10 feet) deep, unable to move his hands. Though his ears and nose were packed with snow, he found he could breath easily, allowing him to remain calm with a positive attitude.

Avalanche Skier POV Helmet Cam Burial & Rescue in Haines, Alaska from Chappy on Vimeo.


Without any way to tell time and wearing few layers he soon became cold and worried. Contemplating his apparent demise he deduced he would prefer death by asphyxiation to hypothermia and resolved to spit out the mouthpiece if he became too cold. Rescuers found him after 42 minutes, unconscious but breathing lightly without the mouthpiece. He did not recall a final rejection, only testing the idea. Though unsubstantiated in this case, the simple act of fainting due to severe anxiety is not unimaginable.

In fact, having been through the experience, I’d say that even though the physical evidence may say cause of death as asphyxiation, half the people actually die from the sheer fear of staring death in the face. Thus, it is ironic to consider that in a real avy, the option of an extra hour thanks to an AvaLung may be more than the human heart can bear.

Every five minutes my thoughts were interrupted as Dr. Grissom told me how many minutes had passed, that my vital signs looked good, and asked if I was okay?

“Okay,” I replied.

After the first five minutes my mind alternated between contemplating how different this might be in a real situation, and regulating the rate and depth of my breathing to play the oboe valve of the AvaLung. It was a welcome distraction from the weightier thoughts that rattled in my brain.

At 35 minutes I mentally celebrated being over the hump. Would I have been able to remain calm for 35 minutes without reassurances every five minutes? Without knowing the burial was half done?

At 45 minutes I tried to move, but to no avail. Thoughts of quitting surfaced, dashed by male determination to finish the job. What mental games would I have to play to hang on without knowing when the rescue might come? Could I do that with the pain of a broken leg or ruptured disk?

And finally, at 55 minutes they announced they’d begin digging me out. The sound of shovels scraping the surface couldn’t have sounded sweeter than a chorus of angels singing “Hallelujah.” I remember hearing about one victim who had a tooth knocked out when his rescuers probed onto his mouth. He said it felt great.

Once they unearthed my head I could relax and breath normally, although I was still a bit anxious. The control part of the experiment loomed like a death sentence. That was where I would be reburied…only superficially this time, but have to breath without the aid of the AvaLung.

Avalanche Burial with Black Diamond AvaLung from Black Diamond Equipment on Vimeo.


I knew beforehand that I wouldn’t last long. With a small air pocket and CO2 growing five percent with every exhale, it wouldn’t be long before I’d be starving for oxygen. But I was still surprised at how quickly my body began gasping and groping for more air. Even though my final rescue was moments away, panic engulfed me. I began to fight with the snowpack, squirming uncontrollably.

Dr. Grissom barked, “Get him out, get him out, now, he’s fighting.” At that point a stream of 100% oxygen was dumped into the breathing tube and a few moments after that, a hand swept the snow from my head and an I breathed a full sigh of relief.

With an AvaLung I had lasted an hour before my oxygenation had dropped to 85%—without one, only 60 seconds. A volunteer the day before had lasted over two hours with an AvaLung — without, two and a half minutes. He might have lasted a full 20 minutes before passing out in a real avy. Me? I’d be lucky to last five minutes.

All this only underscores the importance of avalanche avoidance. An ounce of prevention is truly worth a pound of cure. Thus, while wearing and knowing how to use an avalanche beacon is important, and adding an AvaLung to the pound of cure is an awesome thing, not getting caught is even better. To that end, I think a better use of an AvaLung might be to use it in controlled burials where backcountry skiers can experience firsthand the grip of death an avalanche creates (Ed. Note: Such a burial should only be done under controlled situations with a pulse oximeter to monitor oxygen saturation, an emergency oxygen back-up system attached to the AvaLung, medical supervision, and a team of shovelers). There is no need to set records, five minutes will do the trick. If every backcountry skier did that, I guarantee the death toll would stop rising.

Final note: There is a type of controlled situation that people can do on their own without supervision. Bury an AvaLung in the snow but have the mouthpiece sticking out of the surface, and then bury an AvaLung mouthpiece only leading to a 500 cc air pocket in the snow. The subject then wears nose clips and lays on the snow surface and tries to breathe as long as possible through the AvaLung versus the AvaLung mouthpiece leading to an air pocket. The difference is impressive, and this is safe because subjects are above the snow surface and when they feel starved for oxygen in the control burial they simply take their mouth off the mouthpiece and breathe ambient air. This version does, however, completely side step the associated weight and claustrophobia induced fear associated with a “real” burial.

How-to Video: Using a Black Diamond AvaLung Pack
from Black Diamond Equipment on Vimeo.


Endnotes:
1 – Falk M, Brugger H, Adler-Kastner L; “Avalanche Survival Chances,” Nature, 1994 March 3;368(6466):21
2 – Colin K. Grissom, MD; Martin I. Radwin, MD; Chris H. Harmstrom, ME, MSE; Ellie L. Hirschberg, MD; Thomas J. Crowley, MD. “Respiration during Snow Burial using and Artificial Air Pocket”, Journal of the American Medical Association”, May 3, 2000—Vol. 283, No. 17
3 – Falk M, Brugger H, Adler-Kastner L; “Avalanche Survival Chances,” Nature, 1994 March 3;368(6466):21
